Exterior Design

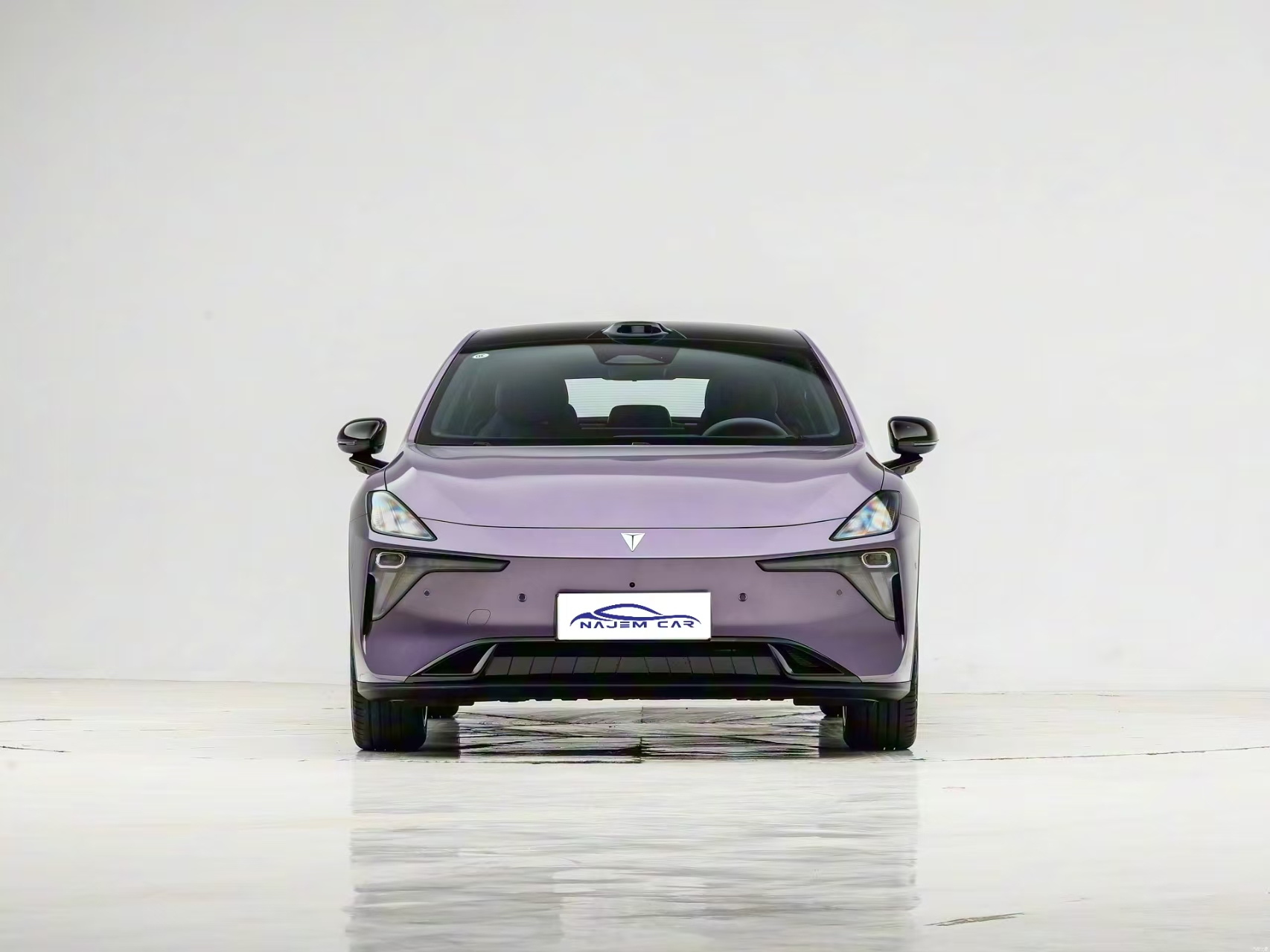

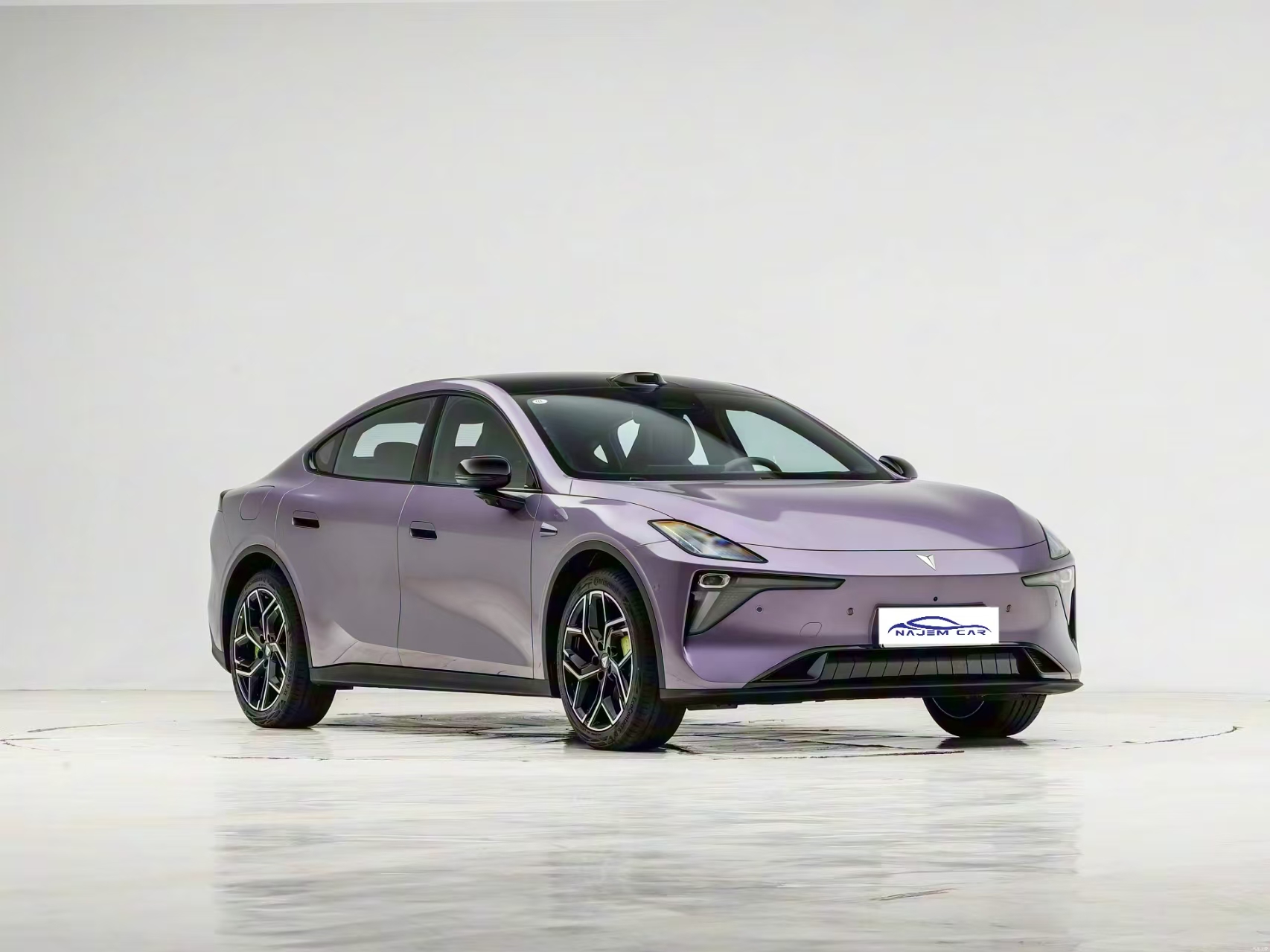

Deepal L06 adopts the latest design language of the family, the front face adopts the design of blooming petal lamps, the shape is inspired by the Deepal brand logo, and it becomes the focus instantly when it is lit. The petal light is also equipped with a welcome dynamic effect, a full sense of ceremony. The vehicle as a whole adopts a relatively simple shape, and the front enclosure is equipped with trapezoidal ventilation and heat dissipation openings, which appropriately enhances the sense of sport. Meanwhile, the new car will also be equipped with a 100L front trunk. Deepal L06 will be available in five exterior colors: Shu Yun Purple, Fluorescent Silver, Pale Dome Black, Moonlight White and Fluorescent Moon Gray.

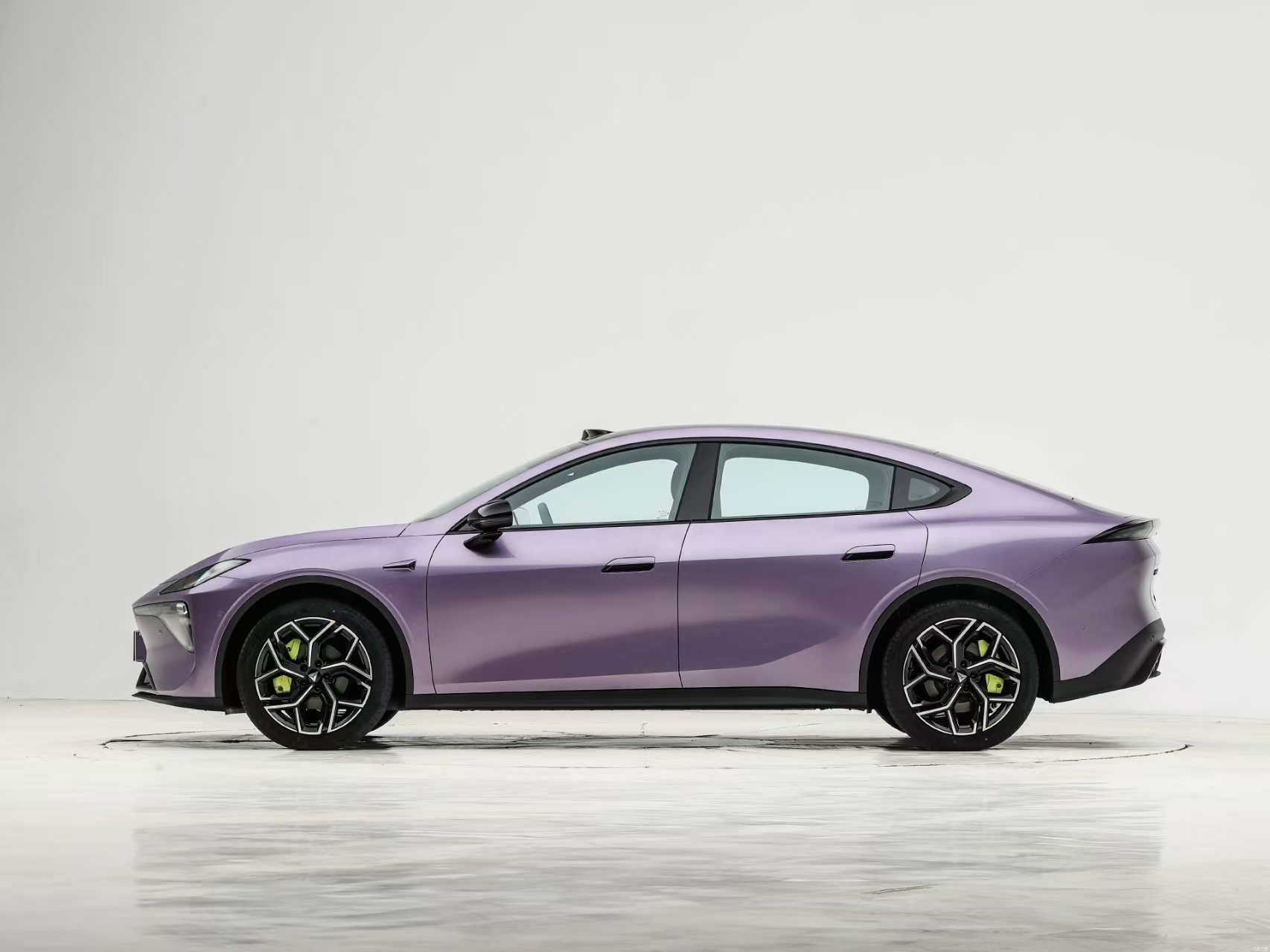

Side of the body, the new car as a whole presents a sporty line modeling, the overall roof for the low wind resistance back design, front and rear side wing panels to create a slightly wide-body visual sense. At the same time, the vehicle will also be equipped with 19-inch wheels and optional color multi-color caliper design, and mechanical semi-hidden door handles. Body dimensions, vehicle length, width and height of 4830/1905/1480mm, wheelbase of 2900mm.

The rear of the vehicle is equipped with a speed-dependent electric rear spoiler, with a maximum opening angle of 23° and a lifting height of 130mm, combining both vision and performance. When the speed exceeds 90km/h, it is automatically raised; when it exceeds 120km/h, it enters the high downforce mode, providing a maximum downforce of 260N (equivalent to 26kg counterweight). Meanwhile, the rear spoiler can be manually customized stepless (10 gears) to adjust the size of the rear wing opening and closing angle, which will be subsequently realized through OTA. In addition, the new car will 464L come with a power trunk as standard across the range.

Interior Design

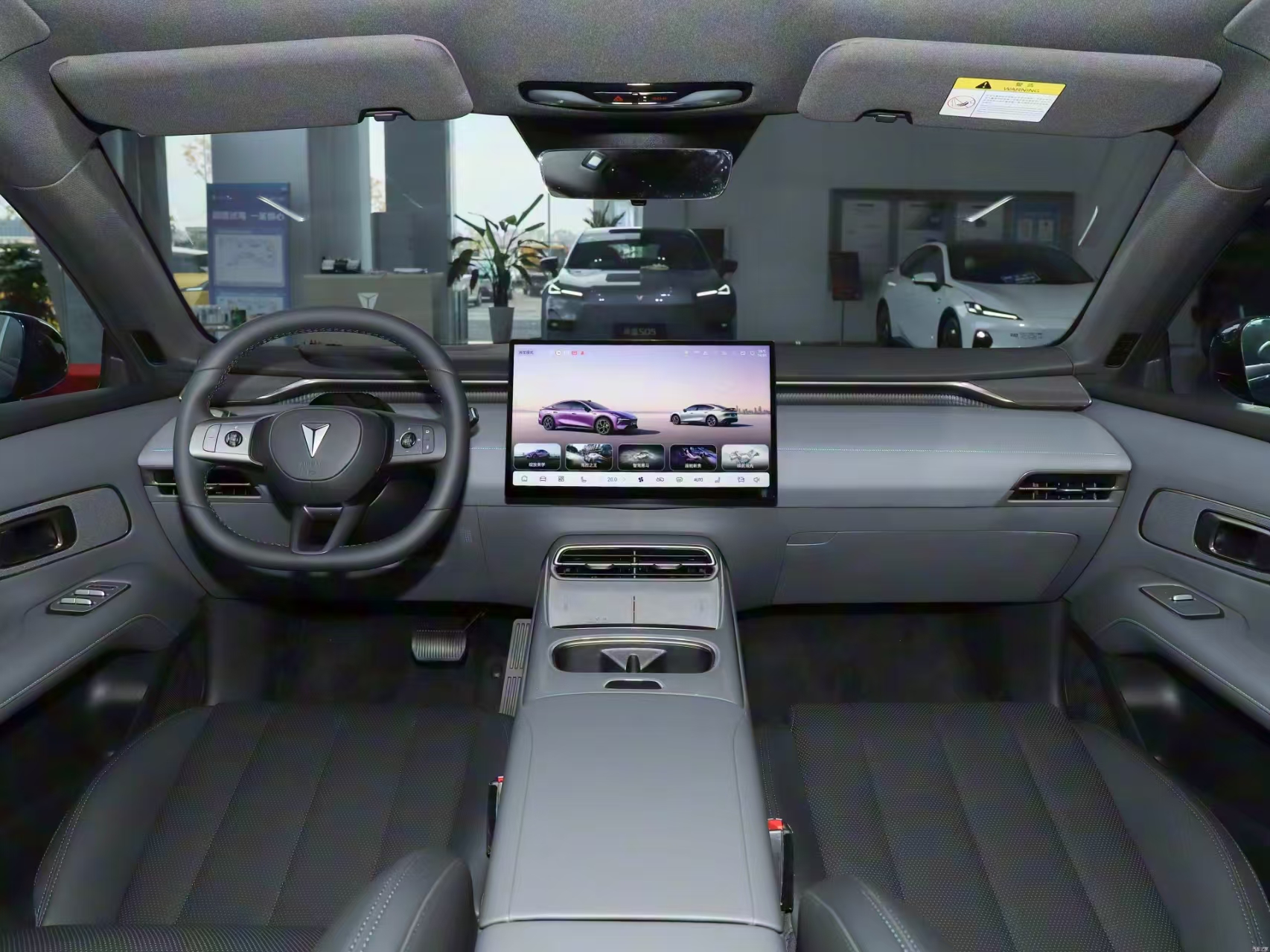

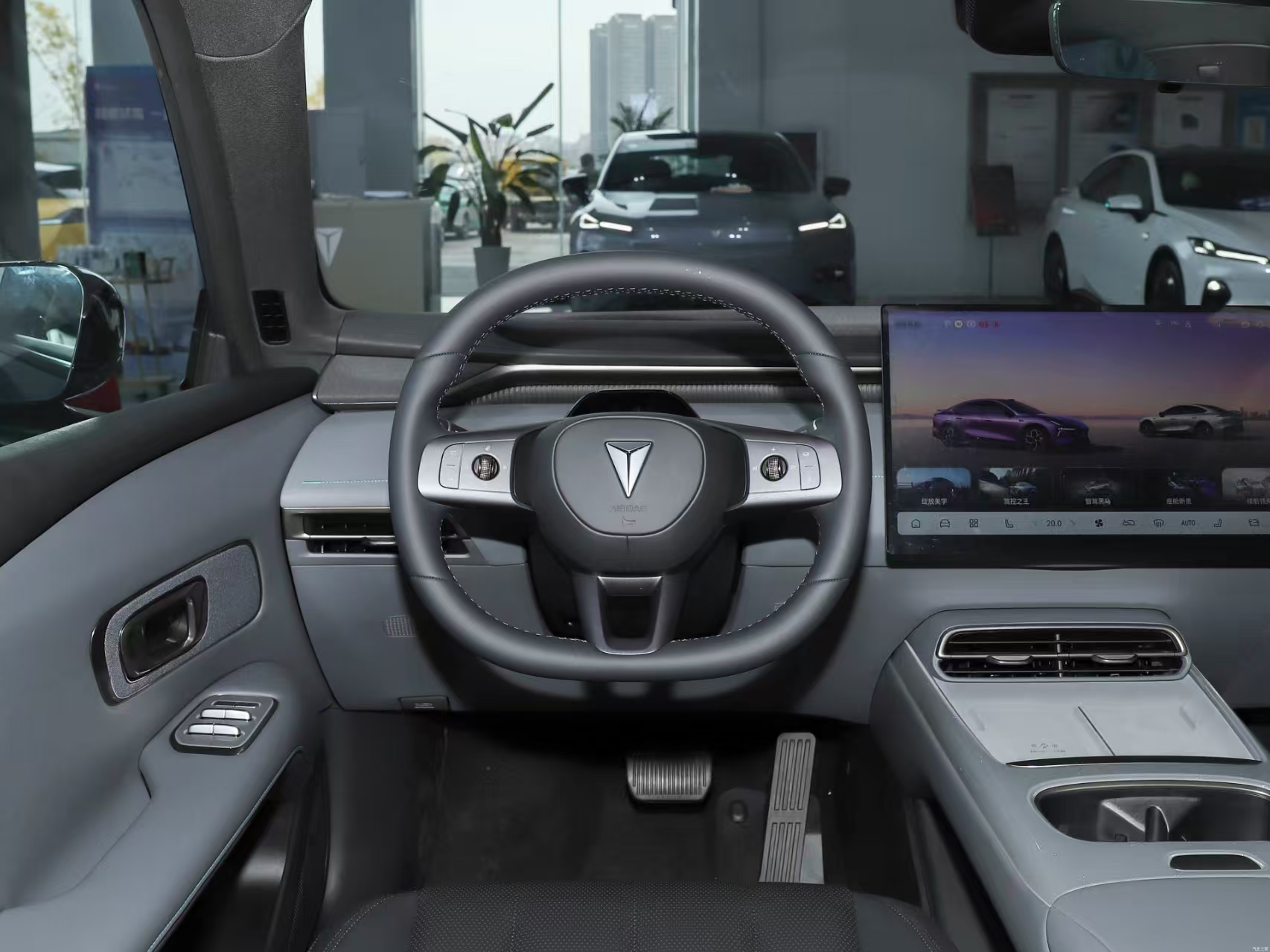

The Deepal L06 seats and dashboard are accented with color-blocking embroidery, offering 90 percent interior upholstery coverage with eco-grade PU flex-skin on the seats. The vehicle is available in three interior colors: Shubuki Purple, Smoke Crystal Mist Gray and Moonstone White. At the same time, the new car is equipped with a 15.6-inch 2.5K sunflower center control screen that supports 13° intelligent left-right deflection to achieve automatic switching between the main and passenger viewing angles, as well as a 50-inch AR-HUD head-up display. The vehicle is equipped with Tengui cockpit equipped with S1 Ultra 3-nanometer vehicle-grade cockpit chip, the center control sliding, zooming, switching applications smoothly and smoothly, multi-tasking parallel still silky smooth.

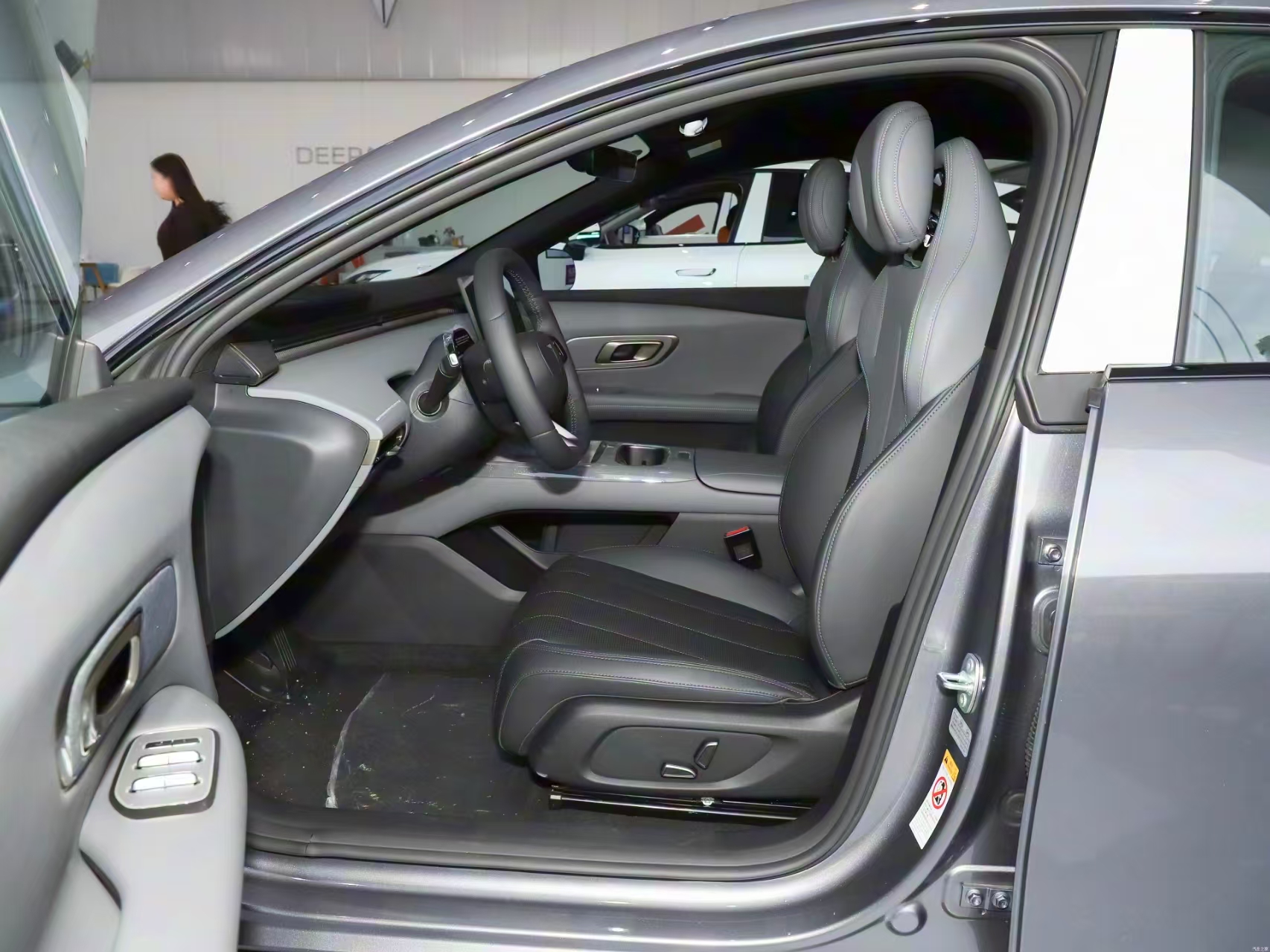

In terms of other configurations, the Deepal L06 front seats come standard with ventilation/heating, and the passenger side is equipped with a zero-gravity seat that supports 14-way power adjustment and 8-point massage. At the same time, the vehicle will also be equipped with a heat pump air conditioning system as standard across the board, and the audio system has a maximum power of 1280W, with 18 units to build a 7.1.4 sound channel. The vehicle is equipped with 256-color zoned breathing rhythmic ambient lighting, and support for wheat-free Karaoke. It is worth mentioning that the vehicle will also be equipped with Deepal Touche, which can then be adjusted at any position for any function.

Safety Configuration

Deepal L06 adopts one-piece die-casting technology, through 7700T large integrated die-casting machine, 80 loose parts are integrated into 2 die-castings, and the torsional stiffness of the whole vehicle is increased by 35%. At the same time, the vehicle also adopts CTV vehicle-electricity integration technology, uniting the body floor with the battery pack structural components. In addition, the new vehicle also adopts one-piece thermoforming double door ring, achieves super strong ABC column through body side enclosure strengthening process, integrates 18 loose parts into 2 whole parts, reduces 222 welding joints, and increases body stiffness by ring mounted structure.

Chassis

Deepal L06 comes standard with a rear five-link suspension, and independent suspension at both front and rear. At the same time, the vehicle will debut with a magnetorheological suspension system, which adopts the fourth-generation magnetorheological of the Jingxi Group, generating damping through electromagnetic effects, and can quickly adjust the damping of the damper in real time during frequent starting and braking, so that the front and rear suspensions can change the damping respectively to inhibit the degree of vehicle pitching. The magnetorheological suspension hardware structure is simpler, with a higher degree of generalization, avoiding the wear and tear and potential stalling risks associated with complex hydraulic control valve systems such as solenoid valves with high-frequency action in CDC systems, and is more reliable. Subsequently, the magnetorheological suspension system will support OTA remote upgrade, and different tuning styles can be upgraded for the same road condition.

Power

The Deepal L06 is equipped with a single-motor rear-drive pure electric powertrain, with a maximum power of 200kW, 0-100km/h acceleration time: 5.9 seconds for the 560 Ultra, 6.2 seconds for the 670 Ultra, and a top speed of 210km/h. In terms of batteries, the new car is equipped with a Ningde Times electric core, Admiralty Batteries, which provides two types of battery packs, 56.12kWh and 68.82kWh. Capacity of lithium iron phosphate battery pack, corresponding to a range of 560km and 670km, SOC30%-80% only 15min, power consumption as low as 11.5kWh/100km.
